Glazing Bars and Structure

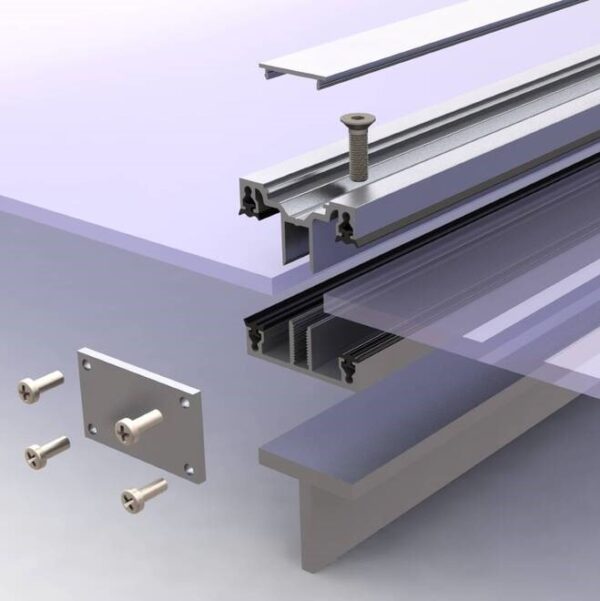

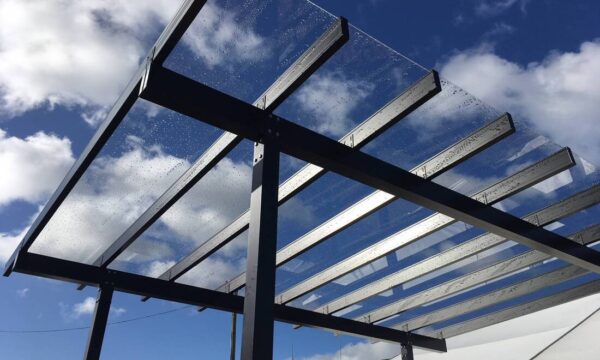

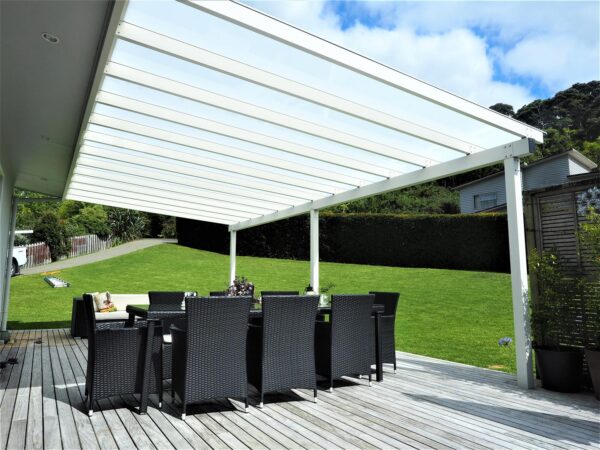

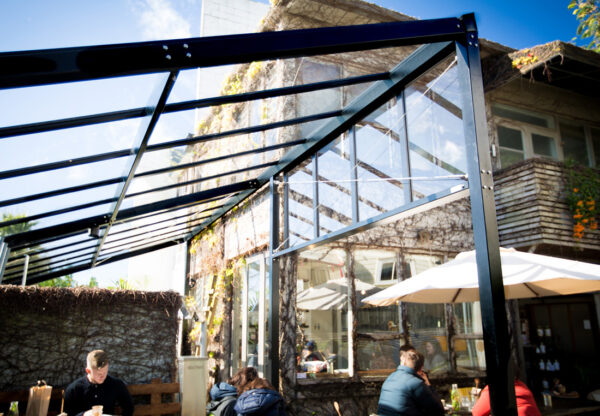

Description The EconoGlaze and ClearSpan structural glazing assembly by Universal Glazing Systems provides a joining, mounting, and sealing solution for various glazing materials. Suitable for glass, flat polycarbonate, Twinwall, and acrylic, it is simple and effective. It uses a top-cap compression clamping method to provide a positive clamping pressure onto the sheet. This creates an effective weather tight seal. The system can accommodate glazing sheets from 4mm up to 16mm thick. Both glazing bar assemblies are available in 4050mm and 6050mm lengths, but can be cut to length on request. EconoGlaze bar system to go on top of existing rafters/purlins, simple system with exposed fixing screws (screws not included) ClearSpan bar system to go on top of existing rafters/purlins, with top cap to hide compression screws ClearSpan box system which is the ClearSpan bar with an integrated rafter Powdercoat (Dulux Duralloy solid colour range) or mill aluminum finish (2 week lead time on powdercoating, note there are minimum order quantities on powder coating) Screws to fasten them to the actual rafters are not included Also available: Brackets, posts, beams/bearers, rafters. For more detailed information, click on the instructions and spec sheets below. If you're considering the ClearVue system or any other system, take a look at EconoGlaze and ClearSpan. Not all components are set up to order online, feel free to email or call us with your order. Pick up available direct from factory in Kumeu - delivery available nationwide (non-rural) (click here for delivery details). Note, this product is not covered under our standard delivery fee. For all deliveries, please ask for a quote first.Price and availability Because of the amount of options available, we currently don't have everything set up to order online. Please email or call us with your order. We will send you an invoice for credit card or direct debit payment. Delivery from $75EconoGlaze Bar Assembly 4050mm $142 $114 - Mill finish $223 $178 - Powder coated 6050mm $211 $167 - Mill finish $315 $252 - Powder coatedInternal channel width is 18mm. Allow 4mm expansion width either side of channel for polycarbonate or acrylic sheet, i.e. 26mm total gap between sheets. Comes with: glazing bar base extrusion, top cap extrusion, rubber gaskets, end plates (2 per bar assembly).ClearSpan F150 Bar Assembly 4050mm $207 - Mill finish $307 - Powder coated 6050mm $304 - Mill finish $419 - Powder coatedInternal channel width is 12mm. Allow 4mm expansion width either side of channel for polycarbonate or acrylic sheet, i.e. 20mm total gap between sheets. Comes with: glazing bar base extrusion, top cap extrusion, top cap infill extrusion, stainless steel top cap compression screws, rubber gaskets, end plates (2 per bar assembly).ClearSpan F150 Box Bar Assembly 4050mm $372 - Mill finish $478 - Powder coated 6050mm $550 - Mill finish $693 - Powder coatedInternal channel width is 12mm. Allow 4mm expansion width either side of channel for polycarbonate or acrylic sheet, i.e. 20mm total gap between sheets. Comes with: glazing bar base extrusion, top cap extrusion, top cap infill extrusion, stainless steel top cap compression screws, rubber gaskets, end plates (2 per bar assembly).Glazing Bar Edge Spacer 4050mm mill finish $42 - 4mm $48 - 6mm $58 - 8mm $65 - 10mm 6050mm mill finish $63 - 4mm $72 - 6mm $78 - 8mm $92 - 10mm4050mm powder coated $63 - 4mm $68 - 6mm $88 - 8mm $103 - 10mm 6050mm powder coated $101 - 4mm $101 - 6mm $122 - 8mm $144 - 10mmAluminium 100 x 100mm RHS Post 3020mm $252 - Mill finish $308 - Powder coated 4050mm $335 - Mill finish $411 - Powder coatedAluminium 100 x 100mm RHS Post with Foot Plate 3020mm $385 - Mill finish $441 - Powder coated 4050mm $483 - Mill finish $546 - Powder coatedAluminium 150 x 100mm RHS Beam 4050mm $421 - Mill finish $498 - Powder coated 6050mm $630 - Mill finish $745 - Powder coatedC Bracket Set to Connect Bearers (end on end) For 150 x 100 $164 For 100 x 50 $99 Comes with: rivnutsAluminium 150 x 50mm RHS Beam 5000mm $417 - Mill finish $514 - Powder coated 6000mm $480 - Mill finish $617 - Powder coatedAluminium 100 x 50mm RHS Beam 5000mm $325 - Mill finish $383 - Powder coated 6000mm $390 - Mill finish $459 - Powder coatedBlack Plastic End Cap for Beam 100x100mm $45 150x100mm $74100x50mm $33 150x50mm $53Saddle Bracket 100mm $45 - Mill finish $52 - Powder coated 75mm $39 - Mill finish $45 - Powder coated 50mm $32 - Mill finish $39 - Powder coated Comes with: 8x S/S tek-screwsHanger Bracket 50mm $55 - Mill finish $65 - Powder coated Comes with: 8x S/S tek-screwsInternal Bracket 5-degree Other angles available $32 - Mill finish Comes with: 4x S/S tek-screwsBracket Assembly Beam to Post 100mm $111 - Mill finish $124 - Powder coated Connects 100mm post to 100mm beam Comes with: 8x rivnuts (fitted), 8x S/S button socket screws, 16x S/S flat washers, 4x S/S hex bolts, 4x S/S nutsEnd plates prevent the sheet slipping out slowly due to expansion and contraction. They're required for at least the bottom end, but are usually put on the bottom and top ends to cap them off. ClearSpan Bar End Plate Mill finish $13 - For 6mm sheets $13 - For 8mm sheets Powder coated $19 - For 6mm sheets $19 - For 8mm sheetsEconoGlaze Bar End Plate Mill finish $13 - For 6mm sheets $13 - For 8mm sheets Powder coated $19 - For 6mm sheets $19 - For 8mm sheets Comes with: 4x S/S screwsClearSpan Box Bar End Plate Mill finish $19 - For 6mm sheets $19 - For 8mm sheets Powder coated $26 - For 6mm sheets $26 - For 8mm sheets Comes with: 6x S/S screwsClearSpan Box Bar Gutter End Plate $24 - For 4-8mm sheets mill finish $32 - For 4-8mm sheets powder coated Comes with: gutter end plate (for bottom box) and bar end plate (for top bar), 6x S/S tek-screwsSoffit Bracket 600x300mm $164 - Mill finish or powder coated (when included with other items to powder coat) This is attached to the underside of a soffit, extends up above the gutter, and takes a 50mm wide beam using the post to bearer bracket (included - note bracket is galvanised steel). Comes with bolt to attach the 2 pieces together.Specifications and installation When working out your rafter spacing, allow a 20mm gap between sheets, and a 32mm gap on the ends (from the very edge of the glazing bar to the edge of the sheet).ClearSpan box bar detailsClearSpan bar detailsClearSpan purlin/rafter span chartClearSpan brochureEconoGlaze detailsEconoGlaze purlin/rafter span chartSoffit bracket detail
