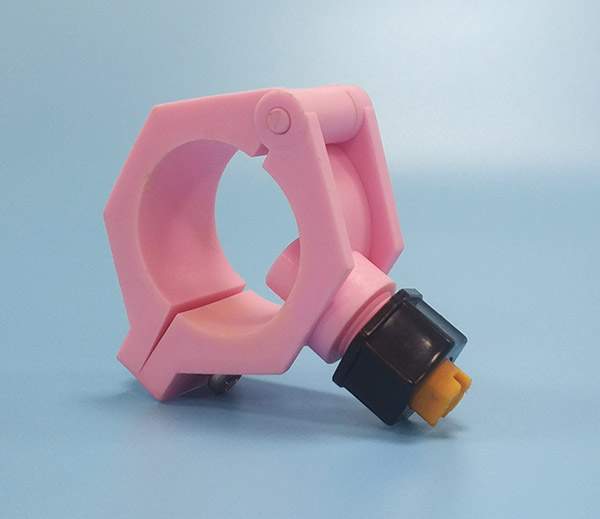

Project Description Plastic Clamp Spray Nozzle J SeriesThe J Series of Plastic Clamp Nozzle is installed in the pipe size of 1/2″, 3/4″ or 1″ with the size of the orifice 3/8″. The pressure is 320 bar for accessories. Sorry, your browser doesn't support embedded videos.Common Application: Metal Cleaning Degreasing in surface treatment Phosphatizing in surface treatment Other Low Pressure Spraying Applications J Series Of Plastic Clamp Nozzle Features: The standard material for gasket is PP while Viton is available. Gaskets fixed in spray caps are installed on spray tips. The interchangeable spray tips whose operating pressure limit is 20 bar, are made from PP/SS/Brass. Grooves are designed in spray caps to fix the lugs. The spray caps are made from nylon. J Series Plastic Clamp Nozzle Models: Part No. Folder Tube JK7421-1/2-NYB 1/2″ Lamp JK7421-3/4-NYB 3/4″ Lamp JK7421-1-NYB 1″ Lamp Spray Tips for J Series Plastic Clamp Nozzles: Spray tips (tips need be replaced after first wear out ) Quick Removeable Tips Part No. Spray tips Quick removeable tips and gasket Standard model No. of Flat fan spray tips (on the small side flow) to SJC-CC-08 CP25611-NY 25612-NYR Standard model No. of Flat fan spray tips (comparatively large flow) to SJC-CC-10 to SJC-CC-20 CP25609-NY 25610-NYR SPECIFICATION SHEETYou can email
