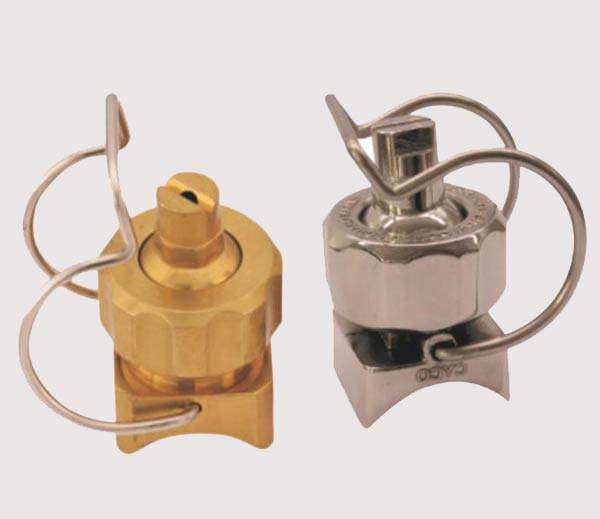

Project Description Global Clamp Spray Nozzle AdjustableAdjustable Global Spray Nozzle 26988RS has available spraying mode: hollow cone, full cone and flat fan. Available spray tip: connecting type and whole type. Common Application: Metal Cleaning Degreasing in surface treatment Phosphatizing in surface treatment Other Low Pressure Spraying Applications Adjustable Global Clamp Nozzle Features (26988RS): The body can be made of Brass or SS (stainless steel), while the screw thread can be made of PVDF, Brass, SS, or Tiatanium. The spray tip can be quickly oriented and direct disassembled without other tools. Available sizes of water pipe for body listed as follows: 26988RS Series Adjustable Global Spray Nozzle: Models Clamp Size Clamp Outer Dia.(mm) Pipe Orifice Dia. (mm) 26988RS 1 32-35 14 1-1/4 38-43 16 1-1/2 44-51 18 2 54-60 20 Flat Fan Spray Tip: Spray Tip Tyle ( spray angle at 3 bar) Capacity (L/min) (bar） 15° 25° 40° 50° 65° 80° 0.3 0.7 1 1.5 2 3 CT6510 CT80100 1.2 1.9 2.3 2.8 3.9 4.6 CT4020 CT5020 CT6520 2.5 3.8 4.6 5.6 7.9 9.1 CT2530 CT4030 CT5030 CT6530 3.7 5.7 6.8 8.4 11.8 13.7 CT4040 CT5040 CT6540 CT80400 5.0 7.6 9.1 11.2 15.8 18.2 CT550 CT4050 CT5050 CT6550 6.2 9.5 11.4 14 19.7 23 CT2560 CT4060 CT5060 CT6560 CT8060 7.5 11.4 13.7 16.7 24 27 CT1570 CT1570 CT4070 CT5070 CT6570 CT8070 8.7 13.3 16 19.5 28 32 CT15100 CT15100 CT40100 CT50100 CT65100 CT80100 12.5 19.1 23 28 39 46 Hollow Cone Spray Tip: Nozzle Type Capacity Liters per minute (bar) Spray Angle (bar) 0.3 0.7 1 1.5 2 3 4 0.5 1.5 4 AT15-30.1 6.2 8.8 10.4 12.6 14.5 17.6 20.2 46° 49° 51° AT25-30.1 7.5 10.7 12.7 15.4 17.6 21.4 24.6 45° 47° 50° AT55-50.1 13.5 19 22.7 27.8 32 39.2 45.2 38° 46° 48° AT55-50.3 13.5 19 22.7 27.6 31.8 38.7 44.4 75° 45° 76° Full Cone Spray Tip: Nozzle Type Capacity Liters per minute (bar) Spray Angle (bar) 0.3 0.7 1 1.5 2 3 4 0.5 1.5 4 BT6 1.6 2.3 2.6 3.2 3.7 4.5 5.1 69° 74° 68° BT12.5 3.4 4.8 5.4 6.8 7.7 9.3 10.6 69° 74° 68° BT25 6.7 9.5 10.9 13.5 15.4 18.6 21 64° 67° 63° BT50 13.5 19.1 21.9 27 31 37 42 91° 94° 88° Quick Dismantling Ball Specification: Quick Dismantling Ball Type Connection Object BLQ Quick Dismantling Object Ordering Info (Clamp Nozzle): 26988RS – 1-1/4 – D14 – SS – BI2 – SS – CC1/4-SS6505 ↓ ↓ ↓ ↓ ↓ ↓ ↓ Nozzle Type Clamp size Pipe orifice Dia. Pipe orifice Dia. quick Dismantling Ball Type Material Code Nozzle Type SPECIFICATION SHEETYou can email
